Yingjiao Car Charger Supplier 12W 5V DC Charger Automatic Car Charger

Yingjiao Car Charger Supplier offers a high-quality 12W 5V DC Automatic Car Charger. As a factory, we provide reliable and efficient charging solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
YC5
Leakage Current
25mA Max. at 24VDC
Output Current
0.1-3A
Dimension
88*37.5*29mm
Rated Power
12W Max.
Use
USB / Car Chargers
Transport Package
100PCS/CTN/45*28.5*31cm, ,Inner PE Bag+White Box.
Trademark
Yingjiao / OEM
Origin
China

Product Description

Car Charger Supplier 12W 5V DC Charger Automatic Car Charger

Product Description
Model: YC5
Power: 12W max.
Input: 12-24VDC
Output Voltage: 1.5-9VDC
Output Current: 0.1-3A
Inrush Current: 65 Amps Max. at 12VDC
Leakage Current: 25mA Max. at 24VDC
No Load Power Consumption : <0.15W
Protections: Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP): Protection to Zero Voltage
Over Voltage Protection (OVP): ≤Vout*150%
Over Current Protection (OCP): 110%-180%
Working TEMP.: -20°C-50°C
Working Humidity: 5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude: -40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug: Cigarette Plug
Certificates and approvals: UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION: Radiation Test&Conduction Test: EN50498
EMS IMMUNITY: ESD  Test:EN 61000-4-2
RS    Test:EN 61000-4-3
EFT   Test:EN 61000-4-4
MTBF: 100000 hours minimum at full load at 25 ambient
Life: 3-5 years alternative
Dimension: 88*37.5*29mm
Weight: 45g
Packing: 100PCS/CTN,45*28.5*31cm





Details:

Model: YC5-0153000 YC5-0302500 YC5-0502000 YC5-0602000 YC5-0901300
DC Voltage: 1.5V 3V 5V 6V 9V
Rated Current: 3A 2.5A 2A 2A 1.3A
Current Range: 0-3.0A 0-3.0A 0-3.0A 0-3.0A 0-3.0A
Rated Power: 4.5W 7.5W 10W 12W 10.8W
Ripple & Noise(max.): 30mVp-p 50mVp-p 60mVp-p 70mVp-p 100mVp-p
Voltage Tolerance: ±5% ±5% ±5% ±5% ±5%
Line Regulation: ±3% ±3% ±3% ±3% ±3%
Load Regulation: ±5% ±5% ±5% ±5% ±5%
Setup,Rise,Hold up time: 3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.

Yingjiao Car Charger Supplier 12W 5V DC Charger Automatic Car Charger

MORE PRODUCTS





Yingjiao Car Charger Supplier 12W 5V DC Charger Automatic Car Charger

ABOUT YINGJIAO

  Yingjiao Car Charger Supplier 12W 5V DC Charger Automatic Car Charger

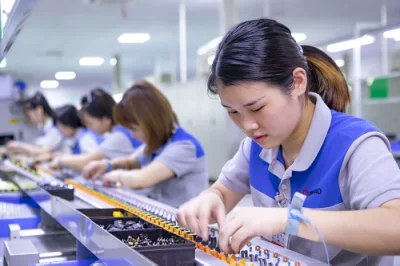

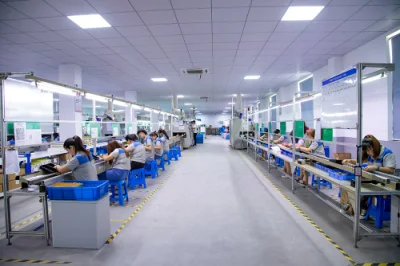

FACTORY&EXHIBITION
