Overview

Basic Info.

Model NO.
M3W132EN
Accessories
Load Balancing
Output Current
32A
Input Voltage
1-Phase, 220V±15%
Input Frequency Range
50/60Hz
Charging Standards
IEC 62196-2 (Type 2)
Ocpp Protocol(Optional)
Ocpp 1.6j
External Communication
LAN(Rj-45) and Wi-Fi
Protection Ratings
IP54
Charging Control
Plug and Play or RFID Card
Display Screen
4.3-Inch LCD Screen
Color
Customized Color
RCD
Type B
After-Sales Service
Remotly After Sales Service
Transport Package
Cartons/PCS 498*342*268mm
Specification
410*260*164; <10kg
Trademark
weeyu
Origin
China
HS Code
8504409999
Production Capacity
10000/Month

Product Description



RECOMMENDED PRODUCTS


Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket
Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket
Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket



Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket
Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket
Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket


Product Description

INJET HOT SELLING PRODUCTS-SWIFT SERIES EV CHARGER

Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket

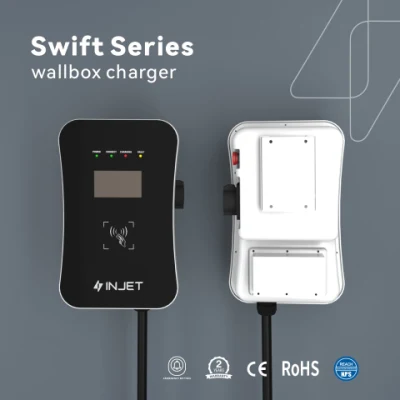

Smart Swift Series EV Charger For Home Charging

Swift Series charger is both suitable for residential and commercial use, the max output can reach 22kw to allow fast charge. its compact design can save more place. This AC EV Charging Station also can be mounted on the the floor-mounted attachment, applicable for outdoor installation like parking lot of office building, hospital, supermarket, Hotel and etc. for commercial EV charging.

Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket
Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket

Smart Swift Charger for Commercial Charging

 Adapts to all electric vehicles, power supplies and mains.

 It's a powerful home charging solution within max current output reach 32 A, which is most ideally and most vehicles can use without issue.It is original enough to fit in any home place, meanwhile easy to install and use.

 With the smart APP, you can easily schedule your home charging and adjust the current and power to your need.CE,RoHs,REACH approved, strictly comply with the health and safety standards.

 CE,RoHs,REACH approved, strictly comply with the health and safety standards.But also a commercial EV charging solution.

 With OCPP 1.6J & 4G optional, Injet-Original is suitable for all parking lots in work places, super markets, apartments and
communities.

Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket

Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket

Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket
Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket

Product Features



Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket
Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket
Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket
Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket
Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket


Product Parameters

General Information
Standard
SAE Standard
(US Version)
IEC Standard
(EU Version/GBT Version)
Charging Connector Type
SAE J1772 (Type 1) plug
IEC 62196-2 (Type 2/Mennekes) Plug/GB/T20234.2 Type 2
Certificates
/
CE, ROHS, REACH,LVD, RED
Rated AC Voltage Power Input
208-240V
220V ±10%
380V ±10%
380V ±10%
Phase Number
/
1 Phase
3 Phase
3 Phase

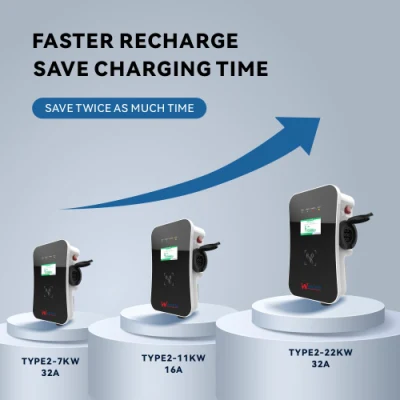

Rated AC Power Output
3.5kw/7kw/10kw
3.5kw/16amp
7kw/32amp
11kw/16amp
22kw/32amp
Current Adjustable
6a ~40a
6a ~16a
6a-32a
6a ~16a
6a ~32a
Rated Frequency
Rated Frequency
Power Plug
NEMA14-50 Plug
/
EVSE Charging Modes
Mode 3 Charging

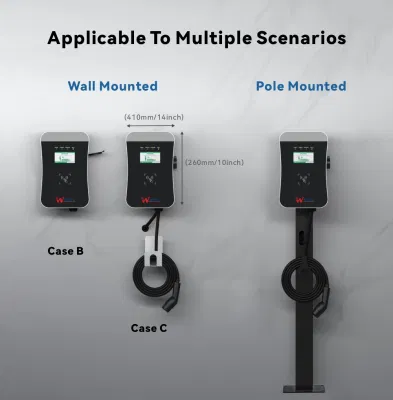

EVSE Connecting Type
Case C, Case B available (Tethered Version with Cables or Untethered Version without Cables)
User Interface & Control
Charging Control
1. Plug in and out for start and stop charging
2. Plug in, swipe RFID card to start and stop charging, then plug out
3. App control
Charging Data Monitoring
Power consumption, current, voltage, miles, cost and schedule charging times etc.
LED Indicators
4 LED indicators-Power/Connect/Charging/Fault
Internet Connection
1.Ethernet/LAN (RJ-45)
2. 2.4 GHz Wifi
3. LTE Category 4(4G optional)/SIM card module
External Communication
1. OCPP 1.6J (optional)
2. RS 485 (optional)
Operational Ratings
IP Ratings
NEMA TYPE 4
IP65  IK08
CE certified IP65, IK10 suitable for indoor and outdoor application
Storage Temperature
-40 to 75ºC (-40 to 167ºF) ambient
Operating Temperature
-30 to 55ºC (-22 to 131ºF) ambient
Operating Humidity
Up to 95% non-condensing
Altitude
≤2000m
Protection
Over Voltage Protection
Over Load Protection
Earth Leakage Protection(CCID 20)
Over-temp Protection
Under Voltage Protection
Short Circuit Protection
Ground Protection
Surge Protection
Wallbox Mechanical
Dimension (H x W x D, mm)
410*260*140
410*260*140
Weight
7-8Kg
7~11KG
Charging Cable Length
5m,7.5m, or Customize Length
Enclosure Material
Metal
Power Specification


AC Power Input Rating
SAE Standard
IEC Standard
AC Level 2
1-Phase
3-Phase
240V
220V ± 15%
380V ± 15%


AC Power Output Rating
3.5kW/16A
3.5kW/16A
11kW/16A
7kW/32A
7kW/32A
22kW/32A
10kW/40A
N/A
43kW/63A
Rated Frequency
50/60Hz
50/60Hz
50/60Hz
Connector Type
SAE J1772 (Type 1)
IEC 62196-2 (Type 2)
User Interface & Control
Charging Control
Plug and Play, RFID Card or APP

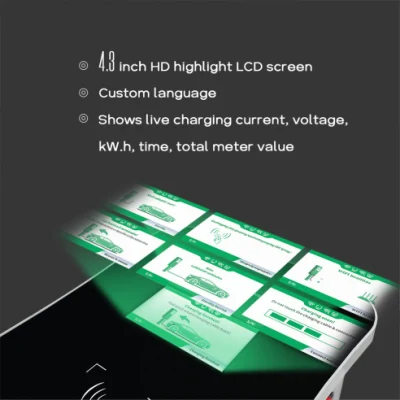

Display Screen
4.3-inch LCD Screen
Voice Prompt (Optional)
Voice guide of the charging process in English

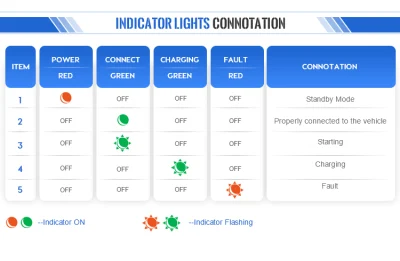

Indicators
4 LED indicators-Power/Connect/Charging/Fault
External Communication
LAN (RJ-45) and Wi-Fi
OCPP Protocol (Optional)
1.6 or 2.0.1
Environmental
Storage Temperature
-40 to 75ºC (-40 to 167ºF) ambient
Operating Temperature
-30 to 55ºC (-22 to 131ºF) ambient
Operating Humidity
Up to 95% non-condensing
Altitude
≤2000m
Protection
Protection Ratings
IP 65
RCD
Type A / Type B
Over Voltage Protection
Yes
Under Voltage Protection
Yes
Over Load Protection
Yes
Short Circuit Protection
Yes
Earth Leakage Protection
Yes
Ground Protection
Yes
Over-temp Protection
Yes
Surge Protection
Yes
Wallbox Mechanical
Dimension (H X W X D, mm)
410 X 260 X 164
Weight
1-phase<10kg; 3-phase<12kg
Charging Cable Length
5m or Customize Length
Enclosure Material
Front-Panel: Tempered Glass; Back-cover: Metal Plate
Mounting Pole Mechanical (Optional)
Dimension (H X W X D, mm)
1400 X 200 X 100
Weight
<8kg
Enclosure Material
Metal


OPTIONAL FUNCTIONS


* Each EV charging station is with emergency stop botton
* Each wallbox EV charger comes with its own MCB/OCCP
* Independently designed, different from other existing models in the market
* Easy installation, maintaining and stable functioning
* Solid durable metal box and full size LCD screen
* Customize designs, logos, colors available even for small quantity and small business

Why Choose Us

Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket

Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket Weeyu 32A 3phase Evse Electric Vehicle Wallbox EV Home Charger IEC62196-2 Wallbox EV Charger Level 2 with Type 2 Socket



FAQ

                                                                                                       WHY US?
1. First, Injet New Energy's chargers compatibility with most global Electric Vehicles charging interface. we have the CE, ROHS, REACH certificate for European Market. and Injet New Energy' are the first company that got the UL Listed of EV charger in China! We also have KFW Listed for Germany market.

2. Injet New Energy' has a series of EV chargers to meet different customer's needs. such as for home use or for commercial.

3. Injet New Energy' is the directly manufacturer, our main products are AC Wallbox, AC Integrated EV Charger, DC fast charging stations, EV connectors. There is no the middleman, you can get the best price and services. Injet New Energy' has strong R&D Capability, OEM and ODM are available.

4. How to promise the quality? First, Injet New Energy' produce the chargers in strict accordance with quality management system standard (ISO9000). Second, in the production, we will age and test the EV CHARGER 3 times; Third, through the Digital Factory, production can be traced and visualized, so as to ensure the stability of products.

5. Our mission is: Create higher value for customers with innovative products and services. Come and be our customers!
