Basic Info.
Model NO.
T1
Type
Fast EV Charging Station
Certification
CE, TUV
Warranty
1 Year Warranty
Transport Package
Woven Bag/Case/Carton Box
Specification
16A/32A/40A
Trademark
Hpconnect/OEM
Origin
China (Mainland)
Production Capacity
10000PCS/Month
Product Description

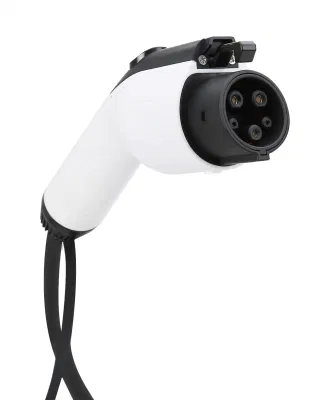

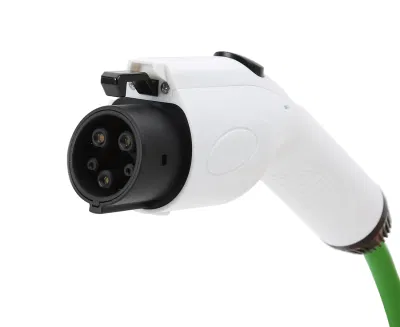

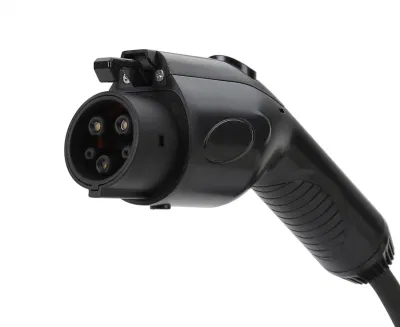

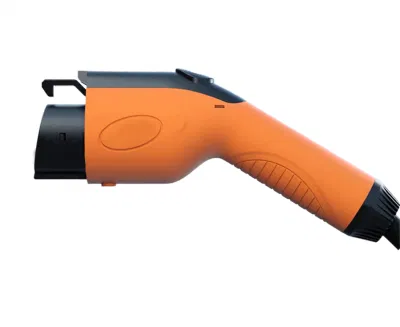

| Product Name | SAE J1772 Charger plug |
| Length | 5m or customized length |
| Electrical Performance: | |
| Rated current | 16A/32A/40A |
| Operation Volatge | 110V/220V |
| Insulation resistance | more than 500M Ohm(DC500V) |
| Contact resistance | 0.5m Ohm max |
| Terminal temperature rise | less than 50K |
| Withstand voltage | 2000V |
| Mechanical Properties: | |
| Mechanical life | no-load plug in/out more than 10000 times |
| Coupled insertion force | 45N~100N |
| Impact of external force | can afford 1M drop |
| Environmental Performance | |
| Operating Temperature | -30~+50ºC |
| Applied Materials | |
| Case material | thermoplastic, flame retardant grade UL94 V-0 |
| Termminal | Copper alloy , silver plating |
Specifications
| Rated current | Cable specification | Remarks |
| 16A | 3*2.5MM²+1*0.75MM² TPU,Ф10.5 (TPE,Ф13) | Shell color: black/white optional; Cable color : Black/white/orange optional |
| 32A/40A | 3*6MM²+1*0.75MM² TPU,Ф13 (TPE,Ф16.3) |
