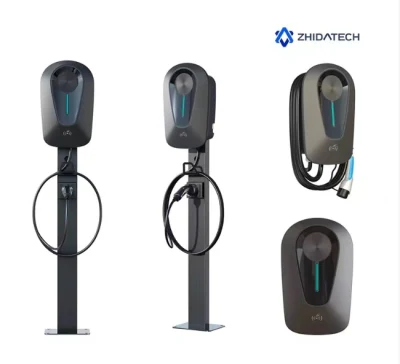

Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton

Get efficient and reliable charging for your electric vehicle with our Type 2 11kw 22kw Wall-Box EV Charger. As a factory, we offer high-quality charging solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Net Weight
10kg/22lbs
Altitude
≤ 2000m
Operating Noise
≤ 65dB
Application
Home Use/Commercial Use
After-sales Service
Cover Thailand, Singapore, Europe
Type
Slow EV Charging Station
Certification
CCC, CE, ISO, TUV, Ocpp 1.6, Weee, Ukca, RoHS
Warranty
24 Months
Transport Package
Standard Carton Box
Specification
473*290*160mm
Trademark
Zhida
Origin
China
HS Code
8504409990
Production Capacity
10000 Pieces/Year

Product Description

Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton
Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton
Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton
Electrical Specification
Charging type Level 2 Mode 3
AC input/output power and current 22kW / 32A (11kw 32A/7kw 32A/3.5kw 16A)
Input / output voltage 323 - 437V, Three phase
Operating frequency 47 - 63Hz
Connector type Type 2, AC 400V, 35A
Protection Undervoltage/ Overvoltage, Overcurrent, Overheat, Short circuit, Leakage, Lightning, Emergency Stop (Optional) Protection
Dimensions 473*290*160 mm / 18.6*11.4*6.3 in
Net weight 10 kg / 22lbs
Operating Environment
Protection rating IP 55
Operating temperature - 40°C - + 55°C
Storage temperature - 40°C - + 85°C
Relative humidity 5 - 95%, without condensation
Maximum altitude 4000m
RCD current 30mA, +DC 6mA
Connection & Communication
RFID Optional
WIFI OCPP 1.6J Optional
Certificate
CE UKCA
TR25 RCM
ROHS REACH
WEEE OCA
Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton
Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton
ABOUT US
Shanghai Zhida Technology Development Co., Ltd. was established on November 25, 2010. The company focuses on new energy, new materials, environmental protection technology, and energy conservation technology. In December 2014, cooperated with the listed company Zhongding Group, Zhida established Zhida Zhongding Automotive Charging Equipment Co., Ltd, an EV charging station production base in Xuancheng, Anhui, which complies with IATF 16949, ISO 9001, ISO 14001 standards. In 2021, 1.45 million home charging stations have been installed in China, among which 350,000 units were supplied by Zhida Tech, with a market share of 24%, ranking 1st in the industry. With a new production base established in Anhui, the company has reached a total capacity of 2,000,000 units per year.

Early from 2015, Zhida Tech began to enter into European and American markets. Today, Zhida has provided EV charging products, services and operations for over 60 auto brands, including
BYD, GWM, Ford, Lincoln, Volvocars, Volkswagen and other renowned EV brands at home and abroad in more than 50 cities and 500 communities.
Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton Type 2 11kw 22kw Wall-Box EV Electric Vehicle Charger for Charging Staiton
FAQs
1.What' s your MOQ?
With two main factories built in Anhui, China, Zhida Tech has a production capacity of up to 2,000,000 chargers per year. Feel free to contact us in terms of your requirements.

2.How to get a sample?
Please provide us your address and contact info to receive a sample. After receiving your payment, we will send out the product as soon as possible.

3. Do you have OEM or ODM service?
For OEM and ODM requirement, we have rich experience in providing automotive companies with OEM services. Feel free to contact us in terms of your customized requirement.

4. Do you have additional after-sales service?
All our products have a basic warranty period of 2 years. Feel free to contact us in terms of specific requirements in your country.

5. Do you test all your products before delivery?
A: Yes, our products are 100% tested before delivery.
