Basic Info.
Model NO.
EVC3S-3210-2
Warranty
12 Months
After-Sales Service
Free Accessories
Current
10A/13A/16A/32A Adjustable
RCD
AC30mA+DC6ma
Function
Fast Charging
Application
AC Home Charging
Feature
Over-Voltage Protection
Transport Package
Standard Export Carton Packing
Specification
40/35/30cm
Origin
China
Production Capacity
100000/Month
Product Description

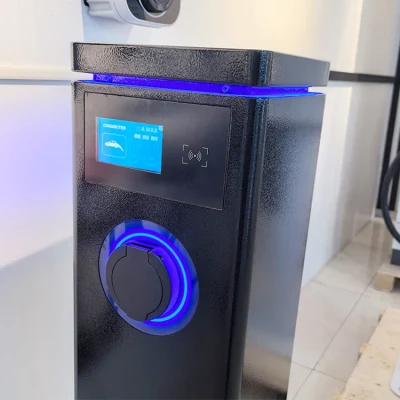

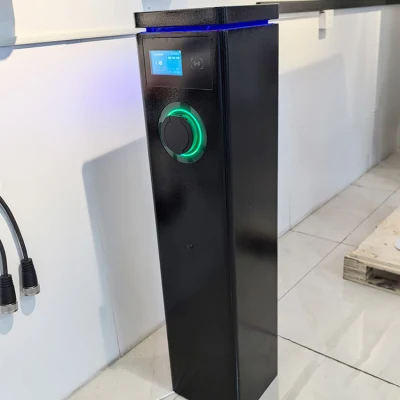

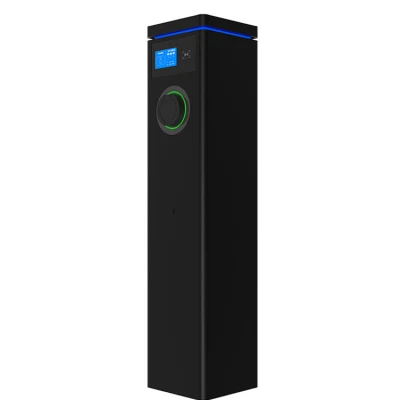

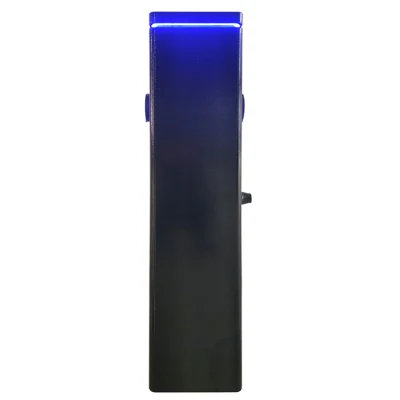

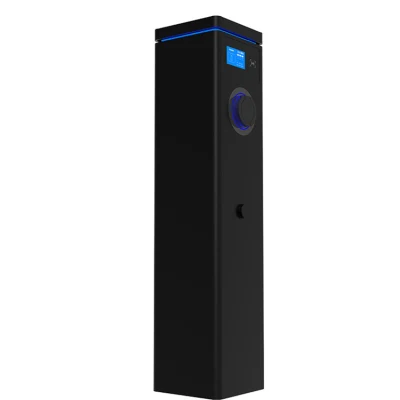

EV Charger with models providing up to 7.4kW or 22kW, these intelligent, modern yet low-cost units have been designed to provide electric vehicle drivers with an affordable charging solution, without compromising on quality. Compatible not only with all EVs and PHEVs on the market, but also with solar power. Smart app gives you full control of your charger. From scheduling your charging session for when your electricity is cheapest, adjusting the power rating, monitoring your energy usage and much more.
ADJUSTABLE
POWER
Choose from 7.4kW single-phase or 22kW three-phase models which by default are set to 32A - however, if a lower power setting is required, the power rating can be adjusted between 10A, 13A, 16A & 32A using the internal Amp selector
POWER
Choose from 7.4kW single-phase or 22kW three-phase models which by default are set to 32A - however, if a lower power setting is required, the power rating can be adjusted between 10A, 13A, 16A & 32A using the internal Amp selector
SLEEK&
COMPLIANT
Offering a modern and discreet home electric vehicle charging solution, that's compatible with all EVs and PHEVs on the market, provided that you have the corresponding cable to plug in
COMPLIANT
Offering a modern and discreet home electric vehicle charging solution, that's compatible with all EVs and PHEVs on the market, provided that you have the corresponding cable to plug in
SAFE AND
SECURE
EV charger range are packed with the latest safety features and fully comply with the latest Smart Charge Points Regulations including security logs and alerts.
SECURE
EV charger range are packed with the latest safety features and fully comply with the latest Smart Charge Points Regulations including security logs and alerts.
STRONG
& DURABLE
The IP54 weatherproof rated enclosure is made from durable ABS and Polycarbonate ensuring it can withstand the harshest of weather conditions for years to come.
& DURABLE
The IP54 weatherproof rated enclosure is made from durable ABS and Polycarbonate ensuring it can withstand the harshest of weather conditions for years to come.
| Model | EVC1S-3210-2 |
| Power | 2*7.4KW |
| Power Supply | 1P+N+PE |
| Rated Voltage | AC220~240V |
| Rated Current | 2*32A(16A ,13A,10A adjustable) |
| Output Voltage | AC220~240V |
| Maximum Current | 2*32A(16A ,13A,10A adjustable) |
| Rated Power (MAX) | 2*7.4KW |
| Charger Connecter | Type 2 socket |
| Cable Length | NO |
| Material | Galvanized sheet powder-coated metal housing |
| Color | black |
| Ingress Protection | IP54 |
| Residual Current Protection | (AC30mA,DC6mA) |
| Certification | CE/ UKCA |
| Certification Standard | EN IEC 61851,EN 62196 |
| Installation | Wall mounted |
| Work Temperature | '-25ºC~50ºC |
| Work Humidity | 3%~95% |
| Work Altitude | <2000m |
| Procduction Dimension (H*W*D)mm | 1200*250*250 |
