Basic Info.
Model NO.
EZD-DC20-FW/WA
Output Voltage
DC 150V-1000V
Max DC Output Current
60A/100A
Max DC Output Power
20kw/30W
LCD Display
4.3" Touch Screen
Waterproof Rating
IP54 (Outdoor)
Output Connector
CCS/Chademo/Gbt
Efficiency
≥95%(Load:50~100%)
After-sales Service
2 Years Warranty
Type
Fast EV Charging Station
Certification
CCC, CE, ISO, TUV, RoHS
Warranty
24 Months
Transport Package
Carton Package
Specification
750*750*350cm
Trademark
Soonplus
Origin
China
HS Code
8504409999
Production Capacity
500pieces Per Week
Product Description

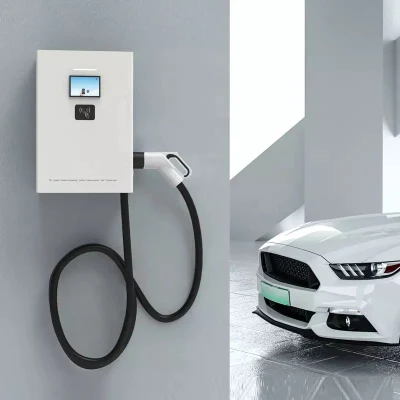

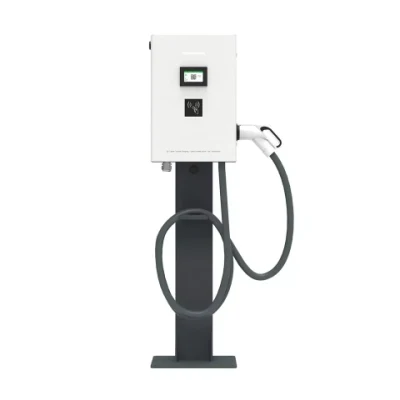

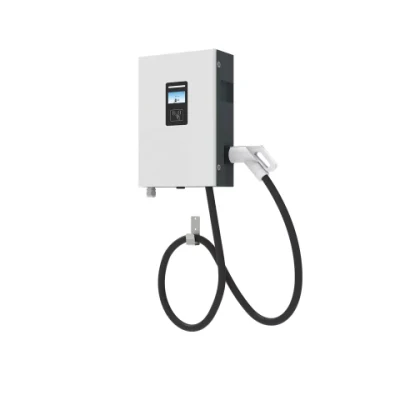

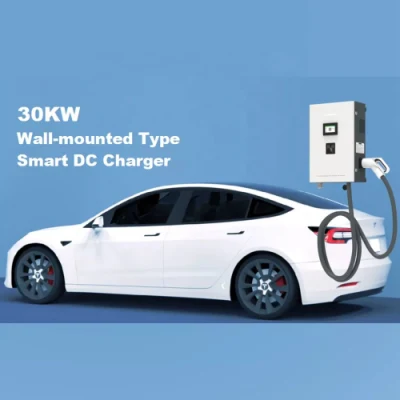

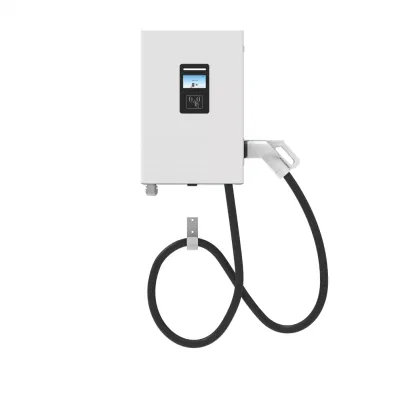

| EV DC charger is specially designed for easy wall mounting or stand column installation applications for CCS /CHAdeMO/GBT standard EV fast charging, small size and light weighteasily to install and move. User friendly interface. IP54 protection, sturdy and durable for outdoor application. Compatible with 150V - 1000V charging voltage with 20kW / 30kW power. |
| Power Suppply | 3P+N+PE |
| Rated Voltage | 400VAC±15%(50/60Hz) |
| THDi | ≤5% |
| Efficiency | ≥95% |
| Power Factor | ≥0.98 |
| Grid Frequency | 50Hz or 60Hz |
| Connector Type | CCS, CHAdeMO, GB/T |
| Output Voltage | 150-1000V |
| Maximum Output Current | 67A/100A |
| Output Power Rating | 20kW/ 30kW/40kW |
| Output Voltage Accuracy | ≤0.5% |
| Output Current Accuracy | ≤±5% |
| HMI | 4.3-Inch touch screen |
| Charging Method | RFID Card |
| Cable Length | Cellular modem:GSM/4G (optional)LAN:10/100 Base-T Ethernet |
| Communication Protocol | OCPP 1.6J |
| Operating Noise Level | ≤60dBA |
| Ingress Protection(IP/IK rating) | IP54/IK08 |
| Power Meter | Accuracy Class 1 energy meter |
| Enclosure | Galvanized steel |
| Product Dimension | 700 x 550 x 1800mm(W x D x H) |
| Package Dimension | 950 x 720 x 1950mm(W x D x H) |
| Protection | Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection |
| Certification Standard | EN/IEC 61851-1,EN/IEC 61851-23,EN/IEC 61851-24,EN/IEC62196-1,EN/IEC62196-3 |
| Operating Temperature | -35ºC to +50ºC |
| Storage Temperature | -40°C to +75°C |
| Maximum Installation Height | ≤2000m |
| Operating Humidity | 5%-95% RH |
| Shenzhen E-Zonda Energy Co., Ltd was established in 2015. We provide safe, innovative, and smart complete AC charging products for electric vehicles, including EV Charging Station,Smart EV wallbox, Portable EV Charger, EV Charging Cable, extension Cable, EV Charger Adaptor and all kinds of EV plugs, sockets, and connectors. All our products come with CE, TUV certification. The products are sold throughout the country Inside and outside with good reputation. We can provide customers with complete charging solutions and technical support with years experiences in Ev charging industry. With professional R & D team and experiences on product customization, OEM and ODM services are available for our customers. We would like to show our honesty, top good quality, competitive prices, and superior efficiency to start business with all of you. Our goal is providing a complete solution including product design, research and developemtn,and service for our customers to achieve a win-win situation for us as well as our clients. Welcome contact from customers all over the world. |  |
| Q What is your sample policy? A We can supply the sample within 7 days, but customer need to pay the sample cost and the courier cost. Q Can I put my brand logo on charger? A Yes, we support OEM and ODM production. We can put your trademark on the ev charger box and plug with MOQ quantity of 50pcs. Q Does your products have quality certification? How long is the warranty time? A We have a very strict quality controlling system which promises the goods we produced are always of the best quality. Our EV charging products passes with CE&TUV certifications. All products FREE warranty within 24 month. Q How can we guarantee quality?#0a4cad A We always conduct a pre-production sample before mass production and 100% Inspection before shipment; Q Can the EV charger charge all EVs on the road? A Yes, all models of our EV Charger work with all Electric Vehicles. Tesla vehicles need the use of a J1772 to Tesla adapter to work with our EV chargers. Q How about your Lead time? A Generally, it will takes 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q What about the delivery? A We can delivery by express,by Air Cargo and by sea Q Does the EV Charger need any APPs or internet? A Some models are set be to standalone type which use RFID card to start or plug and play mode . Some models are Wi-Fi connected and can work with App and any OCPP 1.6j application. Details please feel free to ask. Q What is an OCPP application? A The Open Charge Point Protocol (OCPP) is an open-source communication protocol for networked electric vehicle chargers. The Smart charger is able to work with any charger management software that uses these protocols to direct Smart Charging. |
