3.5kw-22kw Portable OEM Level 2 Type 2 6-32A 32AMP 3phase Charger Evse EV AC Charge Touch Screen

Get reliable and efficient charging for your electric vehicle with our 3.5kw-22kw Portable OEM Level 2 Type 2 6-32A 32AMP 3phase Charger Evse EV AC Charge Touch Screen. As a factory, we offer high-quality products for all your EV charging needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
BNEVA240
Input Voltage
110V/220V/380V
Plug
Schuko/NEMA6-20/Blue Cee/ British Specification Pl
Certificate
CE/TUV/RoHS
Material
Plastic/Aluminum
Product Name
Portable EV Charger
Type
Type1/Type2
Transport Package
Cardboard Box
Trademark
BANNA
Origin
China
HS Code
8504409999
Production Capacity
2000

Product Description

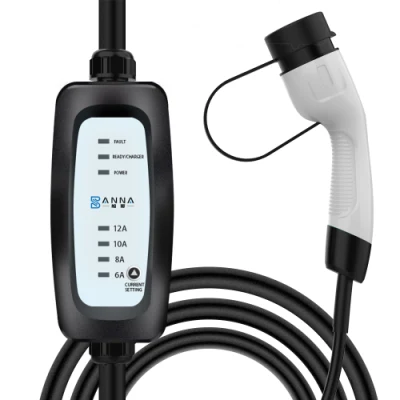

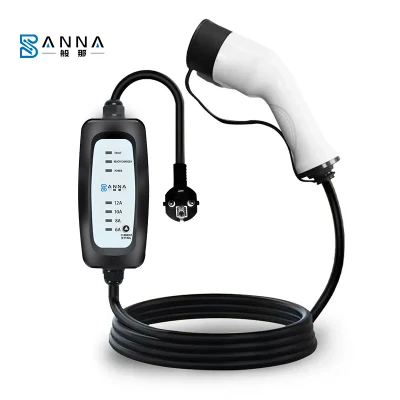

BANNA Hot selling Portable Electric Car Home Use Charger 6~16A Adjustable Current 3.5KW Applicable to Most Electric Vehicles

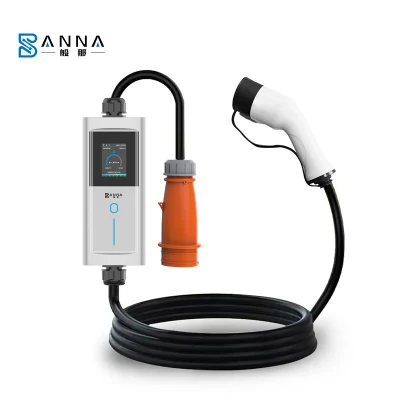

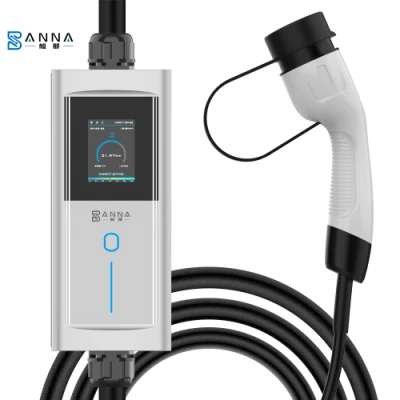

3.5kw-22kw Portable OEM Level 2 Type 2 6-32A 32AMP 3phase Charger Evse EV AC Charge Touch Screen
Model KFEVAM2-07K KFEVAM2-11K KFEVAM2-22K
Technical Data
Power Up to 7kW Up to 11kW Up to 22kW
Voltage 230VAC±20% 400VAC±20% 400VAC±20%
Rated current 32A 16A 32A
RCD Type A(AC:30mA)+DC:6mA
Frequency 50/60Hz
Standby power <3W
User interface 2.4''LED display, Setting button, Status LEDs
Certificate/Compliance CE / EN/IEC 61851-1:2017, SAE J1772

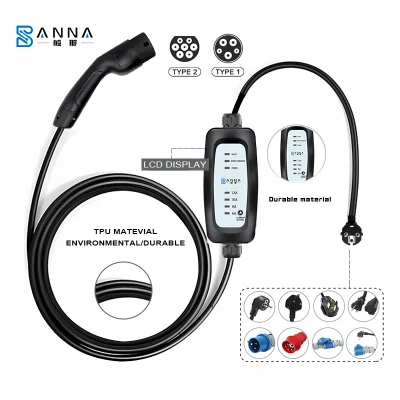

Charging Interface Type1/Type2 Plug,
Special Protection Short circuit protection, Leakage current protection, Input Wiring Defect, Over current protection, Ground protection, Over/Under voltage protection, Over temperature protection

Physical properties
Warranty 1 years
Protection Ip66
Control box material Aluminum alloy
Cooling Natural cooling
Operating temperature -30 °C to +55°C
Humidity Max.95%(non-regulating)
Net Weight 3.3kg 3.1kg 4.6kg
Gross Weight 4.2kg 4.0kg 5.5kg
3.5kw-22kw Portable OEM Level 2 Type 2 6-32A 32AMP 3phase Charger Evse EV AC Charge Touch Screen 3.5kw-22kw Portable OEM Level 2 Type 2 6-32A 32AMP 3phase Charger Evse EV AC Charge Touch Screen 3.5kw-22kw Portable OEM Level 2 Type 2 6-32A 32AMP 3phase Charger Evse EV AC Charge Touch Screen 3.5kw-22kw Portable OEM Level 2 Type 2 6-32A 32AMP 3phase Charger Evse EV AC Charge Touch Screen 3.5kw-22kw Portable OEM Level 2 Type 2 6-32A 32AMP 3phase Charger Evse EV AC Charge Touch Screen 3.5kw-22kw Portable OEM Level 2 Type 2 6-32A 32AMP 3phase Charger Evse EV AC Charge Touch Screen
