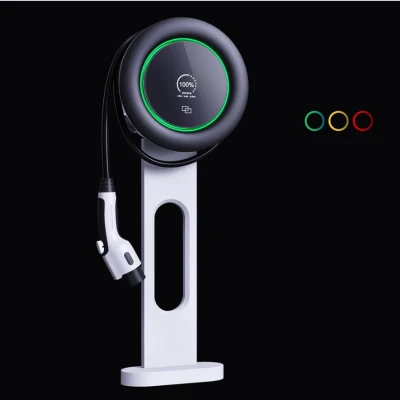

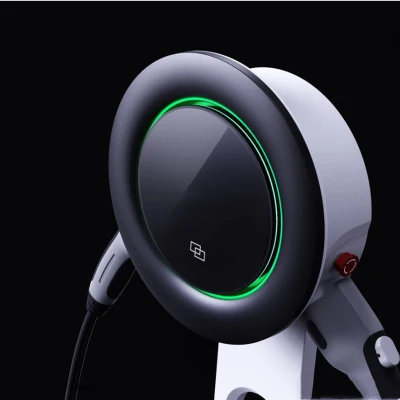

AC EV Charger 240V 48A 40A 32A EV Wallbox 7kw 9.6kw 11kw Floor Mounted Charging Stations with UL2231

Introducing our state-of-the-art AC EV Charger 240V 48A 40A 32A EV Wallbox 7kw 9.6kw 11kw Floor Mounted Charging Stations with UL2231. As a factory, we offer reliable and high-quality charging solutions for electric vehicles.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Company Profile
  • Certifications
  • Case & Application scenarios
  • Exhibition
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Protection Level
IP54
Noise Control
≤40dB
Wiring Mode
Down in and Down out
Output Mode
Single Circuit, European Standard Cable, 5m Cable
Output Voltage
AC380V±20%
Communication Method
Ethernet, 4G (Optional), WiFi(Optional)
Charging Mode
Plug and Play, Automatic Full, Regular Charging
Payment Method
Swipe Card Charging, Scan Code Charging
Rated Power
AC 22kw
Transport Package
Carton
Specification
450 * 270*130(mm)
Trademark
TONGXING
Origin
Shandong Province
HS Code
8504409999
Production Capacity
100000sets/Year

Product Description

wholesale wall mount ac fast ev charger manufacturers type2 level 2 ev charging station with screen

Product Description

AC EV Charger 240V 48A 40A 32A EV Wallbox 7kw 9.6kw 11kw Floor Mounted Charging Stations with UL2231AC EV Charger 240V 48A 40A 32A EV Wallbox 7kw 9.6kw 11kw Floor Mounted Charging Stations with UL2231AC EV Charger 240V 48A 40A 32A EV Wallbox 7kw 9.6kw 11kw Floor Mounted Charging Stations with UL2231

Product Parameters


Rated power AC 7KW AC 11KW AC 22KW
Product model 7kw single machine with plastic shell 11kw single machine with plastic shell 22kw single machine with plastic shell
Installation method Wall mounted
Overall dimensions 450 * 270 * 130 (mm)
Weight About 4.5 KG
Output mode Single circuit, European standard cable, 5M cable Single circuit, European standard cable, 5M cable Single circuit, European standard cable, 5M cable
Interface LED lamp, 4.3 inch LCD touch screen (optional)
Wiring mode Down in and down out
Input voltage AC220V±20% AC380V±20% AC380V±20%
Input frequency 45-65Hz
Output voltage AC220V±20%
Single gun output current Single item 32A Three items 16A Three items 32A
Metering accuracy Level 0.5
Current limiting protection ≥110%
Standby power ≤3W
Interface 4.3 inch LCD color touch screen, LED indicator light
Charging mode Plug and play, automatic full, regular charging
Payment method Swipe card charging, scan code charging
Communication method Ethernet, 4G (optional), WIFI(optional)
Executive standards IEC62196
Safety function Overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, lightning protection, emergency stop protection, leakage protection,  adhesion detection
Working temperature -25ºC-+50ºC
Working humidity 5% - 95% frost free
Working altitude <2000meters
Protection level IP54
Cooling method Forced air cooling
Noise control ≤40dB



Company Profile

AC EV Charger 240V 48A 40A 32A EV Wallbox 7kw 9.6kw 11kw Floor Mounted Charging Stations with UL2231



Certifications

AC EV Charger 240V 48A 40A 32A EV Wallbox 7kw 9.6kw 11kw Floor Mounted Charging Stations with UL2231

Case & Application scenarios

AC EV Charger 240V 48A 40A 32A EV Wallbox 7kw 9.6kw 11kw Floor Mounted Charging Stations with UL2231AC EV Charger 240V 48A 40A 32A EV Wallbox 7kw 9.6kw 11kw Floor Mounted Charging Stations with UL2231

Exhibition

AC EV Charger 240V 48A 40A 32A EV Wallbox 7kw 9.6kw 11kw Floor Mounted Charging Stations with UL2231

Packaging & Shipping



AC EV Charger 240V 48A 40A 32A EV Wallbox 7kw 9.6kw 11kw Floor Mounted Charging Stations with UL2231

FAQ

Q1:Are you a factory or trading company?
A: We are a professional manufacturer of energy applications for over 23 years. And we are ev charger one-stop service supplier.

Q2: How about your delivery time?
A: Generally, it will take 15-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q3:How can we guarantee quality?
A: 1. We have a professional R & D team and assembly team, professional and technical staff.
     2.Our products will be professionally inspected one by one before leaving the factory.
     3.We also test 100% before delivery.
Q4: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit .
    2. We will continue to improve technology to ensure that our products can keep up with social needs.

    3. Our after-sales team will provide professional after-sales service in a timely manner.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. We also support ODM and OEM.
Q6: What is your terms of payment?

A: Alibaba online fast payment, T/T, L/C,etc.
