7kw Wall Mounted EV AC Charger

Looking for a reliable 7kw Wall Mounted EV AC Charger? Look no further! We are a factory specializing in electric vehicle charging solutions. Get yours today!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • FAQ
Overview

Basic Info.

Model NO.
Electric Vehicle Charger
EV Plug
Type 1 and Type 2 for Option
After-Sales Service
Available
Type
Slow EV Charging Station
Certification
CE
Transport Package
61(W)*60(H)*80(D)(Cm)
Specification
61(W)*60(H)*80(D)(Cm)
Trademark
NASN
Origin
China
HS Code
8504409992
Production Capacity
100PCS Per Day

Product Description


EV AC slow Charger

This AC charging station, mainly used for AC slow charge of electric vehicles. The  product is composed of charging casing, wall-hanging backboard, floor-to-ground column (optional), etc., with charging protection, charging by swiping card, charging by scanning code, mobile payment,networking monitoring and other functions.This product adopts industrial design principle, easy to install and easy to use.
Compatiable with all electric vehicles, including e-bus and e- trunk.  These intelligent units are managed remotely over Ethernet access to the internet or OCPP service to operate. Ideal for commercial locations, such as car parks, retail and business parks, hotels and fleet depots.

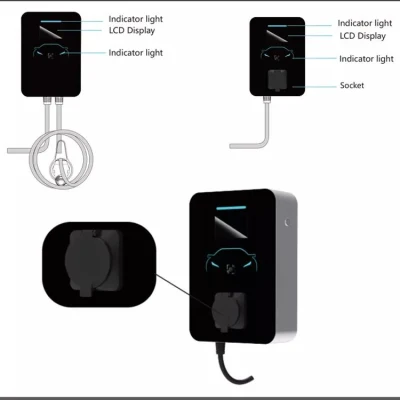

7kw Wall Mounted EV AC Charger
Features:

 *Exterior:Exquisite and light, a variety of color options, suitable for different application scenarios.
*Protection: IP65(waterproof and dustproof),can withstand wind,rain and sun exposure.
*Operation:The head of the charger is designed to open the cover with one bottom. The operation is simple and convenient, namely plug and play.
*Safety:multiple protection, safety upgrade, high quality materials, fireproof, waterproof and dustproof.
*Commonality:Small body, big energy, compatible with 99% of the new energy vehicles.
*Quality:Pure copper wire without oxidation,comply with inspection standard,flame retardant impact resistance.


Applications:

For personal use, home use, for ev fleet, ev bus, electric heavy truck, light vehicle and charger sharing,
7kw Wall Mounted EV AC Charger
Datasheet:

Datasheet Model AC022K
Input Power Supply 3P+N+PE
Rated Voltage 400V AC
Rated Current 64A
Frequency 50/60Hz
Output Output Voltage 400V AC
Maximum Current 2x32A
Rated Power 2x22KW
User Interface Charge Connector Type 2 socket
Enclosure Galvanized steel
Left/Right Panel Temper glass
LED Indicator Green/Yellow/Red
LCD Display 2.7'' black & white screen
RFID Reader Mifare ISO/IEC 14443 A
Start Mode Plug&Play/RFID card/App
Emergency Stop No
Communication WiFi Yes
Ethernet Yes
3G/4G Yes
OCPP OCPP 1.6 JSON (OCPP 2.0 optional)
Sefety Energy Meter MID certified
RCD 30mA Type A + 6mA DC
Ingress Protection IP54
Impact Protection IK08
Electrical Protection Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under
voltage protection, Over/Under frequency protection, Over/Under temperature protection
Certification CE
Certification Standard EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018
Warranty 2 Years
Environment Installation Floor-stand
Work Temperature -30ºC~+50ºC
Work Humidity 5%~95%
Work Altitude <2000M
Package Product Dimension 1200*290*230MM (H*W*D)
Package Dimension 1320*480*430MM (L*W*H)
Net Weight 25.5KG
Gross Weight 45KG
External Package Wood case

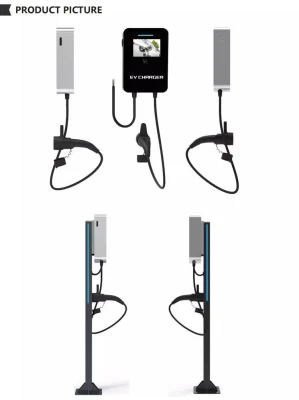

7kw Wall Mounted EV AC Charger
Other Popular



7kw Wall Mounted EV AC Charger
7kw Wall Mounted EV AC Charger
7kw Wall Mounted EV AC Charger

7kw Wall Mounted EV AC Charger
7kw Wall Mounted EV AC Charger
7kw Wall Mounted EV AC Charger

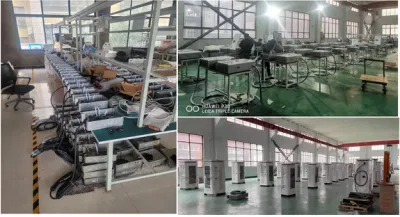

Factory Details

7kw Wall Mounted EV AC Charger
GUANGZHOU NASN POWER CO.,LTD is dedicated to producing and manufacturing AC EV charger, DC EV charger, DC power supply and battery storage products. As a professional  manufacturer, NASN POWER focuses on providing customers with professional charging equipment that is safer, more efficient and more stable. NASN's products are oriented to the household and commercial markets in the EV and power supply charging field, including all kinds of EV Connector and EV Charger Sockets, EV Charging Cables, emergency rescue EV charger system, V2H and V2V charger, Solar EV charger system,Media screen EV charger, Portable DC fast EV Charger, Public multi-standards DC fast charger, e-scooter and e-motorcycle charger, Portable POWER STATION,portable battery speaker, and DC power supply.

FAQ



Q1: What kind of EV Charger do you have?AC and DC charger with connectors Type2, CCS1/CCS2, CHAdeMO, GB/T, etc.

Q2: Do you provide customized product?
We provide OEM and ODM services for clients.

Q3: What is the delivery time of EV charger?

About 4-6 weeks.
Q4: What about your warranty of EV Charger?
Generally 2 years. Our warranty period depends on customer's requirements and we always put customer's need as priority.

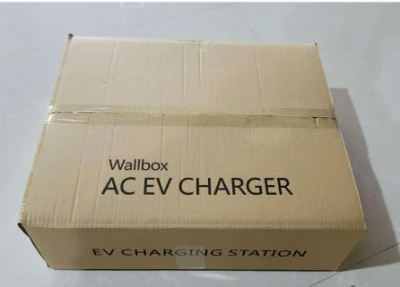

Q5:How do you package it ?
A:We pack in cartons.

Q6:what's the MOQ?
A:For LOGO, color or other special requirements, a minimum of 20 is required. If you do not have these requirements you can buy
directly, we will ship within 3-10 days.

Q7:Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q8:Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.

Q9:What is your terms of delivery?
A:EXW, FOB, CFR, CIF, DDU.

Q10:What is your terms of payment?
A:We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
