20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module

Get the 20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module from our factory. High-quality, efficient charging for electric vehicles.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Basic specifications
  • Detailed Photos
  • Product Parameters
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • Production Process
  • After Sales Service
Overview

Basic Info.

Model NO.
MXC75050B
Cooling Mode
Fan Cooling
Parallel Modules
60PCS
Mtbf
500, 000 Hours
Input Frequency
45Hz~65Hz
After-Sales Service
1 Year Warranty
Warranty
1 Year
Transport Package
Wooden/Kraft Carton
Specification
85mm*226mm*325mm;
Trademark
Maxwell
Origin
Hebei
HS Code
8504409999
Production Capacity
300, 000 Pieces/Year

Product Description

Basic specifications





Model MXC75050B
Efficiency (Full Load) ≥98.5%
Communication Protocol CAN bus
Dimensions  85mm(H)*226mm(W)*325mm(D)
Input Voltage 600 Vdc~850 Vdc
Output voltage 200 Vdc~750 Vdc
Output derating above 60ºC




Detailed Photos

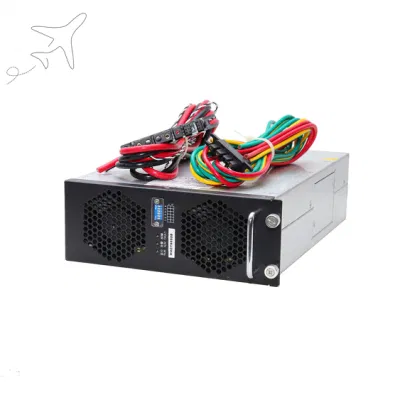

20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module

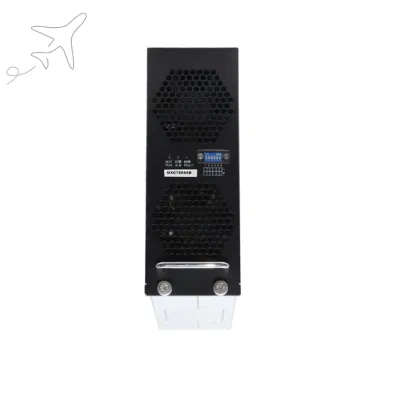

20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module

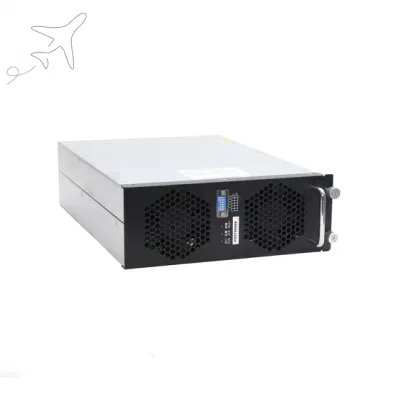

20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module

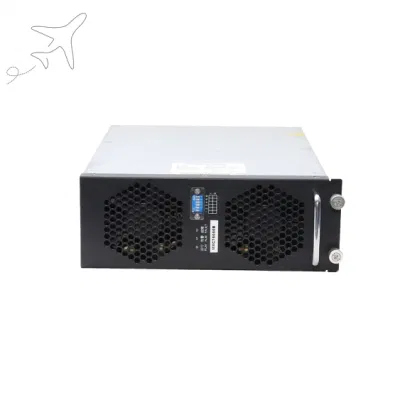

20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module



Product Parameters

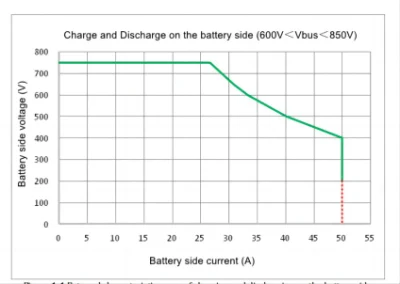

20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module

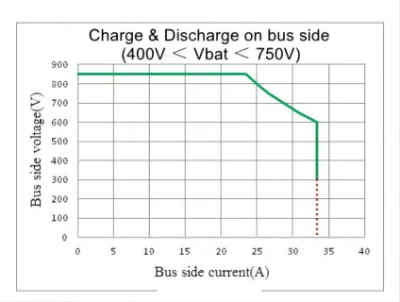

20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module


1. Function details:
hot swap
The charging module adopts plug-in technology, which is convenient for installation and maintenance.
current sharing
The charging modules can automatically share the current, and the unbalance degree is less than 5%.
Over temperature protection
The ambient temperature over-temperature protection point is 75°C.
2. Output voltage adjustment
Through the external monitoring module, the output voltage of the module can be continuously adjusted. The adjustment range is from 200Vdc to the maximum output voltage of 750Vdc on the battery side, 600Vdc to the maximum output voltage of 850Vdc on the DC bus side, and the minimum adjustment step is 0.1Vdc.

Certifications

20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module
20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module
20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module
20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module
20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module
20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module

CE/ TUV / EMC EN IEC 61000-6-1:2019:EN IEC 61000-6-2:2019:
EN IEC 61000-6-3:2021:EN IEC 61000-6-4:2019:
EN IEC 61851-21-2:2021
cTUVus UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16


Packaging & Shipping

20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module
20kw@750V Bidirectional DC EV Fast Charging Infrastructure Power Module



Company Profile

Maxwell was established in 2009. At the beginning of the company's establishment, our plan was to develop and produce related products in the field of power electronics. The service industry is mainly the power industry, and the main product is power converters. The reason for choosing this industry is that this industry is relatively stable, and it can bring a stable development to the company in the early stage. After several years of development and exploration, it is found that the market capacity of this industry is limited and there will not be much growth. It can't provide much motivation for the company's long-term development. So we plan to develop other areas.
After 2014, we foresaw more opportunities through the rise of photovoltaic, energy storage, new energy etc, so our company's strategic direction has changed. We have made a lot of adjustments from market exploration to product positioning and product development. In the end, we have focused into directions of energy storage and new energy.
At present, our products for new energy charging are 1000V 20KW , 1000V 30KW, 1000V 40KW, 1000V 50KW

Products for energy storage (V2G) are MXR80025,MXR75027, MXC75050B etc products.
Our plan for the next 3-5 years: Continue to deepen the new energy industry, take the charging module as the core product, update and iterate to keep up with the needs of the market and customers, and develop the sales of supporting products for this industry. If we have the ability to establish a strategic partnership with charging station operators and platform promotion companies in the later stage, we plan to develop the entire charging system.

Production Process

1. Raw Material Procurement and Management: We will purchase qualified raw materials from qualified suppliers, and put them into the raw material warehouse after passing the inspection. The raw materials are divided into regions, categories and environmental management according to the characteristics of the device. The data must be consistent in the three aspects of material card, physical raw materials, and account entry.
2. Production Link: SMT, Manual plug-in/wave soldering, Three anti-spray brush lines, Assemble, Debugging and Inspection, Aging Toaster Test, Online maintenance link, Packaging link, Finished product wareho.
3. Delivery Link According to the review order issued by the sales, the finished product warehouse issues the corresponding products to the delivery link, and selects the appropriate delivery channel and delivery method according to the different needs of customers. During the period, the order information will be remarked, including customer information, product information, etc. And make records, enter the company's unified office management system.
4. product traceability From the procurement of raw materials to the delivery of qualified products and delivery to customers, we will enter a series of information into the company's unified management system. This ensures product traceability.

After Sales Service

Warranty Times: 1 year
In the first half of the year for non-human damage, we will replace A new one for you for free.  You only need to delivery the damaged module(Both parties bear the freight cost); In the second half, we will repair the non-human damage for you for free. Meanwhile, our engineers are available for providing any technical assistance during your testing processes.

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
